S3950 Screening Bucket

  • Changeable Blades
  • Versatile Fitment
  • 16, 24 & 35MM Grain Sizes

Product Overview

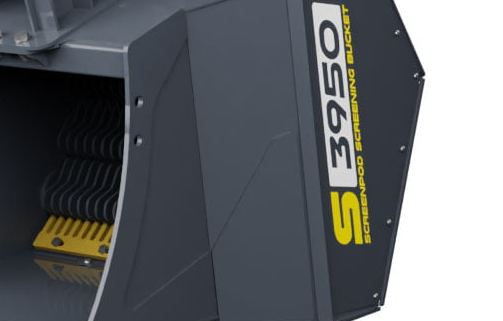

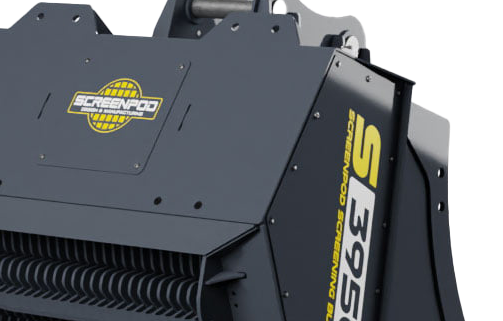

The S3950 Screening Bucket is engineered for efficiency and durability, offering rapid setup time and straightforward operation, making it ideal for a wide range of applications. Its incredibly robust design features wear-resistant steel construction, ensuring longevity and reliable performance even in the most demanding conditions. The heavy-duty chain drive, powered by twin hydraulic motors, operates without the need for a case drain line, simplifying the hydraulic system.

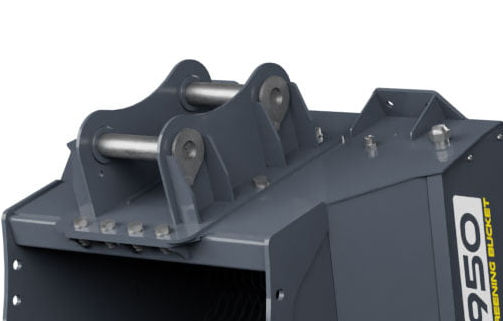

The bucket comes standard with three grain size options—16mm, 24mm, and 35mm—allowing for versatile screening capabilities. Additionally, unique shaft and rotor configurations can be tailored for processing specialist materials, while shaft scraper blades enhance uptime and performance. With minimal maintenance requirements and excellent service access, the S3950 Screening Bucket is designed to keep operations running smoothly. It can also be fitted to a wide range of excavators and loaders, offering unmatched flexibility in various job sites.

When you need an efficient way to screen a wide variety of materials in any location, Screenpod Screening Buckets stand out for their versatility and performance. These buckets deliver exceptional screening efficiency from a compact design, making it possible to screen materials anywhere, no matter the terrain or environment.

Applications

This product can be used for the following applications:

Topsoil Screening
Peat Screening
Recycling Aggregates
Pipeline Padding
Trench Filing
Sand Screening
C&D Waste Screening

Product Specifications

Hydraulic Flow: 60-150 LPM
Pressure: 200/300 Bar
Volume: 0.808 M3
Height: 1260 MM
Width: 1300 MM
Depth: 1470 MM
